A new machine has been added to M&R’s line of automatic screen printing presses.

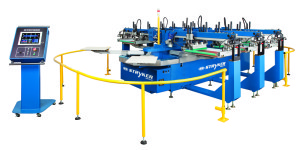

The Stryker oval-shaped press begins with a 10-station base module. That base module can be expanded in six-station increments to create up to 52-station configurations. Other than the end stations, there are no restrictions on printhead placement. Because all other stations can support printheads – and any station can be left open – Stryker’s layout can be tailored to almost any production requirement. Since Stryker’s oval shape takes up less floor space than comparable carousel presses, it makes more efficient use of available production area. It also allows Stryker to fit into spots no carousel press could. Stryker has a maximum standard image area of 60x84cm (24x33in), but can print images as large as 100x84cm (39x33in) in alternating print heads, making it ideal for cut-pieces and all-over garments. Its large colour touchscreen control panel with icon-based labeling can display information and commands in multiple languages, and it features self-diagnostics and a production speed monitor to ensure more accurate job costing. The control panel sits on a caster-mounted pedestal, giving operators the ability to easily change position. Stryker has multiple print-stroke capability and an independent print-start/print-finish setting that automatically activates and stops printheads at the beginning and end of production runs.
Stryker features an all-new, highly-sophisticated servo-drive index system that combines simplified design with outstanding performance and reduced maintenance. Stryker’s smooth, high speed operation and precise control make it possible to achieve index speeds up to 900 pieces per hour. Index speed parameters can be adjusted quickly and easily. Stryker also incorporates multiple-indexing capability. Stryker’s printheads are driven by fast, reliable variable-frequency AC electric-drive motors that deliver smooth printhead movement and exceptional control. Simple print-stroke adjustment promotes exceptionally high production rates. Stryker’s printheads also incorporate an elegantly simple, tool-free method of adjusting off-contact at all four corners of the screen frame quickly and independently. There are independent print and reset buttons and independent print/flood speed controls on each printhead to make setup and operation fast and easy. Stryker’s high-lift mode simplifies screen loading, unloading, inspection and cleaning.
Stryker boasts a multitude of impressive standard features. To help keep Stryker operating at peak performance, the maintenance minder system alerts operators when scheduled maintenance is due. M&R’s laser locator system speeds pallet positioning and changeover, and it assists operators in the precise positioning of garments and cut-piece goods. M&R’s exclusive squeegee dam system gently lowers the squeegee blade onto the screen mesh when the press is idle to help prevent thinner water-based and discharge inks from flowing into the image area. M&R’s electronically adjustable ink dip ink retrieval system keeps ink in the screen printing area. Stryker’s park feature facilitates setup and tear-down by simultaneously retracting the squeegee and floodbar and then moving them to the outside edge of the press for easy access.
